High parasitic loads from Sentry Mode are a primary cause of low-voltage system failure for Tesla owners operating in the Tigard region. Frequent vehicle waking at places like Washington Square Mall prevents deep sleep cycles, causing the DC-DC converter to overwork, increasing internal resistance, and triggering VCFRONT alerts that require professional diagnostic clearing.
I am standing over the wheel well of a 2024 Model Y, the frunk plastics already pulled back to reveal the 16V Lithium-ion low-voltage battery tucked near the firewall. The owner just arrived from a long afternoon at Washington Square Mall. While they were inside, the car was anything but resting. I can see the history in the service logs. Every time a shopper walked too close, the FSD computer snapped awake, the cameras started recording, and the low-voltage system took a massive hit.
How Sentry Mode at Washington Square Drains Tesla 12V Battery Life
A Tesla in deep sleep pulls about 50W, but the moment Sentry Mode triggers, the power draw spikes to roughly 250W. This constant oscillation between the High Voltage pack charging the low-voltage battery and the low-voltage battery discharging to feed the cameras creates a heat-soak effect that accelerates chemical aging.
The power budget simply does not balance. In the climate of the Willamette Valley, where we see drastic May temperature swings, this rapid cycling accelerates chemical degradation. The battery is never permitted to idle. Without electrical silence, the Battery Management System (BMS) remains blind to the true state of charge. This constant wake-state prevents the vehicle from entering the low-power hibernation necessary to preserve the chemistry of the 16V lithium cells.
Identifying Tesla VCFRONT Alerts Before Complete Battery Failure
Before a Tesla completely shuts down from a low-voltage failure, the Gateway typically logs a VCFRONT_a192 alert. This critical early warning code is the vehicle’s cry for help before it leaves you stranded in a parking structure. Behind the scenes, the diagnostic logic attempts a rescue three times by forcing the DC-DC converter to pump voltage into the low-voltage battery, hoping to force the internal resistance to drop.
If the battery’s milliohm levels remain too high, the vehicle hard-codes a failure and permanently opens the high-voltage contactors. This safety logic dictates a total shutdown, instantly converting 4,000 pounds of advanced technology into an immobile block. Spiking internal resistance on the service screen is the definitive marker that the battery chemistry has reached its end of life, despite the vehicle being relatively new.
The Impact of the Scholls Ferry Road Ground Post
A corroded G010 ground post can mimic a failing battery. In Tigard, the combination of persistent mist and magnesium chloride runoff creates a high-resistance crust on the terminal, causing voltage drops that trick the vehicle’s computer into registering a false battery failure.
Before I condemn this battery, I always check the G010 ground post. It is located right under the frunk trim, and in Tigard, it is a prime target for severe oxidation. I have seen cases where the battery is perfectly healthy, but a 0.2-ohm resistance spike at this ground post during a high-amp event—like the power steering rack pulling juice—tricks the computer into thinking the battery is failing.
I take a wire brush to the threads and apply a dab of dielectric grease to ensure a clean metal-to-metal bond. If the voltage drop stabilizes after cleaning, the battery lives to fight another day.
The Diagnostic Verdict at Tigard SUV and Auto

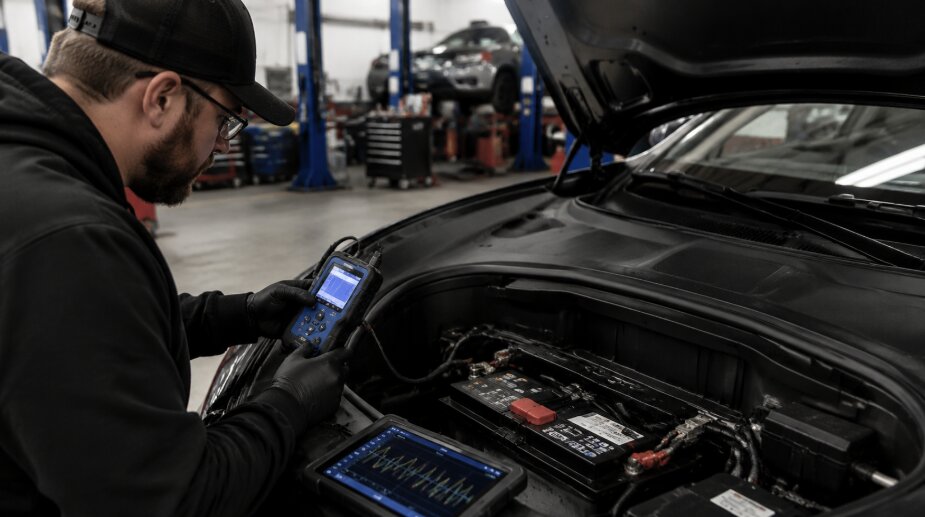

To get a definitive forensic conclusion, I use a Midtronics tester to measure the exact voltage drop during simulated contactor closure. The screen immediately shows a staggering drop, and the PicoScope reveals a jittery waveform, which indicates the 16V battery’s internal BMS is actively clipping output to prevent a thermal event.
This is the smoking gun proving the battery is internally compromised from too many deep-discharge surveillance cycles while parked at the mall. I will proceed with the replacement—strictly adhering to the critical 8Nm terminal torque spec to avoid cracking the new lithium casing—and perform the necessary software battery relearn to clear the gateway faults.
Schedule Your Tesla Battery Diagnostic in Tigard
If your Tesla is displaying unexpected software glitches or you want to ensure your 16V battery can handle the heavy parasitic draw of daily Sentry Mode use, do not wait until the high-voltage contactors lock you out.
Bring your vehicle to Tigard SUV and Auto at 12394 SW Scholls Ferry Rd, Tigard, OR. We will pull your Gateway logs, test the battery’s internal resistance, and give you the empirical data you need to make an informed decision before a complete failure leaves you stranded.
Frequently Asked Questions
Can Sentry Mode kill my Tesla low-voltage battery?
Yes. Sentry Mode keeps the vehicle communication and camera systems actively powered, drawing up to 300W. The constant drain prevents the battery from resting, forcing a chemical breakdown that ultimately ends in a locked car and a service bill.
How do I know if my Tesla 16V battery is failing?
Tesla vehicles typically display a “Low Voltage Battery Needs Service” warning on the touchscreen. You might also notice that software updates fail to download or that the doors and trunk respond slowly. If the battery fails completely, the high-voltage contactors will not engage, leaving the car immobile.
Is the 16V Lithium Tesla battery better than the old 12V lead-acid?
Yes. While the 16V lithium units outlast traditional lead-acid batteries, their death is binary—there is often no warning, just a bricked vehicle. Because they fail instantly without the gradual voltage drop seen in older models, proactive testing is the best way to catch a failing unit.
How long does it take to replace a Tesla low-voltage battery?
The physical replacement takes approximately 45 minutes to one hour. This includes removing the frunk trim panels, disconnecting the high-voltage first-responder loop for safety, and performing the necessary software battery relearn procedure within the Tesla service menu.
