Tesla ADAS camera calibration on Highway 217 requires a precise 0.2-degree pitch tolerance to ensure lane-centering accuracy. High-albedo glare from wet Tigard pavement causes CMOS sensor pixel blooming, inducing software gain errors. Manual recalibration via Service Mode restores optical alignment, compensating for hardware shifts caused by local road vibration and debris.
When I look at the dash of a Model Y that throws “Vision Degraded” alerts every time it hits the merge near Washington Square Mall, the root cause usually lies with the exterior cameras. The owner’s manual suggests these cameras are self-healing and will calibrate themselves while you drive.
While the neural net constantly learns, it cannot compensate for a physical B-pillar camera that has vibrated 1.6 degrees off-axis due to the constant oscillation of the concrete expansion joints on Highway 217. Let’s look at exactly how I measure these deviations and correct them.
Why Your Tesla Veers Near Washington Square Mall

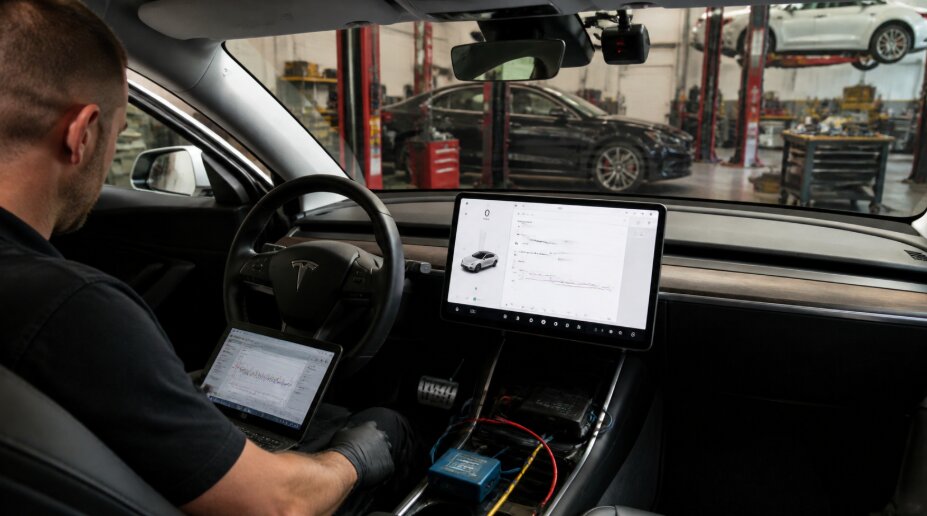

When I pull up the Tesla Service Mode menu on the center screen, I specifically look for the pitch, yaw, and roll values of the side repeater and B-pillar cameras. These cameras serve as the eyes of your lateral control system.
While the front-facing triple-camera setup handles longitudinal ranging—ensuring you do not hit the car in front of you—the B-pillar cameras are entirely responsible for keeping you centered between the lines. If their physical angle shifts even slightly, the system loses its spatial awareness.
The Strict 0.2 Degree Pitch Tolerance
The factory specification for these cameras is unforgiving. If the camera pitch deviates by more than 0.2 degrees from the true horizon, the ADAS logic begins to struggle with spatial mapping.
On Highway 217, where the elevation continuously shifts as you climb toward the I-5 interchange, that deviation becomes a massive problem. I frequently see cameras shifted just enough that the vehicle’s computer believes the lane line is six inches further to the left than it actually is, resulting in sudden, unnerving steering corrections.
Diagnosing B Pillar Optical Bloom on Highway 217
The environment in Tigard during the spring presents a unique optical challenge for Tesla Vision. We frequently get heavy afternoon sun strikes hitting recently rain-washed asphalt.
This combination creates a high-albedo effect, turning the highway into essentially a giant mirror on the ground. When I monitor the live camera feed in the service bay, I can see the CMOS sensors blooming as they fight to process this high-intensity light spill.
How Tigard Sun Glare Masks Lane Departure Signals
To compensate for the extreme glare, the vehicle’s software automatically turns down the digital gain. However, doing this creates a secondary issue: it loses the ability to see faint, weathered lane markings near the Greenburg Road exit.
Software gain adjustments simply cannot fix a camera that is physically aiming down at the glare instead of straight at the horizon. This misalignment forces the system to drop out of Autopilot to ensure safety.
The Impact of OR 217 Construction on Tesla Vision
The recent 2026 infrastructure and finishing work on the OR 217 Auxiliary Lane Project has made this optical challenge worse. Between Allen Blvd and Scholls Ferry Road, the road Ghost linessurface features numerous “ghost lines.”
are the dark, shiny scars left behind when old lane markings are ground off to accommodate the new traffic patterns. To a misaligned camera fighting through afternoon glare, these scars look identical to actual lane dividers.
Recalibrating for Auxiliary Lane Markings
A camera with a pitch error of 1.5 degrees or more will frequently lock onto these ghost lines instead of the temporary high-visibility tape or fresh paint. This misidentification is a primary trigger for sudden phantom braking.
To fix this, I execute a “Clear Calibration” command. Clearing the calibration cache deletes the legacy focal points, compelling the hardware to map a fresh environment and recalibrate to the specific, updated geometry of the 217 lane shifts.
Executing a Software Based Camera Reset in Tigard
Before running any software commands, I start by checking the physical hardware. Finding a loose B-pillar trim clip that has backed out is common. Re-seating it usually resolves a small mechanical failure that was adding a micro-vibration to the camera feed.
That subtle vibration creates “optical noise” that looks like a strobe effect to the vehicle’s computer. Once the hardware is physically secure, the software reset can successfully take hold.
Monitoring the Dynamic Learning Phase via Service Mode
Once the hardware is secure, I take the vehicle out for a dynamic calibration drive, usually heading toward the Scholls Ferry entrance to 217. I watch the progress bar on the center screen as the system actively maps the horizon.
The calibration is successful when the pitch value migrates from its failing 1.6-degree red status back into the verified 0.1-degree green zone. The moment of clarity typically happens right as I pass the Fanno Creek bridge. The jitter in the PicoScope waveform stabilizes, the Service Mode indicator flips to “Calibrated,” and the steering wheel goes perfectly still.
Schedule Your Tesla ADAS Diagnostic in Tigard
If your Tesla is struggling to stay centered or frequently dropping out of Autopilot on your daily commute, do not rely on the vehicle to heal itself.
A professional ADAS diagnostic ensures your cameras are physically aligned and your software is properly mapped to the local roads. Reach out to Tigard SUV and Auto to restore your vehicle’s lane-centering accuracy. Visit the shop at 12394 SW Scholls Ferry Rd, Tigard, OR 97223, United States to have your system professionally verified.
Frequently Asked Questions
Why does my Tesla say Vision Degraded on Highway 217
This alert triggers when B-pillar cameras face high-albedo glare from wet pavement or experience solar pixel blooming. In Tigard, this environment highlights camera pitch misalignment, preventing the sensor from distinguishing actual lane markings from intense road reflections.
Can I calibrate my Tesla cameras myself
While a self-calibration process is available in the user menu, it cannot compensate for a B-pillar camera that has physically vibrated out of its 0.2-degree alignment tolerance. Professional recalibration ensures this strict tolerance is met using Service Mode diagnostics and physical hardware inspections.
Does Highway 217 construction affect Autopilot performance
Yes. The recent auxiliary lane project created ghost lines and shifted boundaries between Allen Blvd and Scholls Ferry Road. Optical pitch errors cause the ADAS logic to lock onto ground-off pavement scars instead of valid lane markers, resulting in lateral instability and phantom braking.
How long does a professional Tesla camera calibration take
The process involves a hardware inspection, a software-based Clear Calibration command, and a dynamic test drive. It typically takes a few hours to run the full diagnostic, clear out the pitch errors, and confirm that the live data for the B-pillar cameras is back in the green-zone specification.
Will a new windshield require camera calibration
Yes. Replacing the glass in front of a camera alters the refractive index and its physical positioning. Performing both static and dynamic recalibrations is essential to ensure forward-looking cameras aim perfectly at the horizon, maintaining the safety of Automatic Emergency Braking and Adaptive Cruise Control.
